Dvorak
Enhanced IR Guide














The following graphics are the standard Dvorak Flowcharts used at AFWA



(These are enhanced versions of the original flowcharts developed by Vernon Dvorak, 1984):

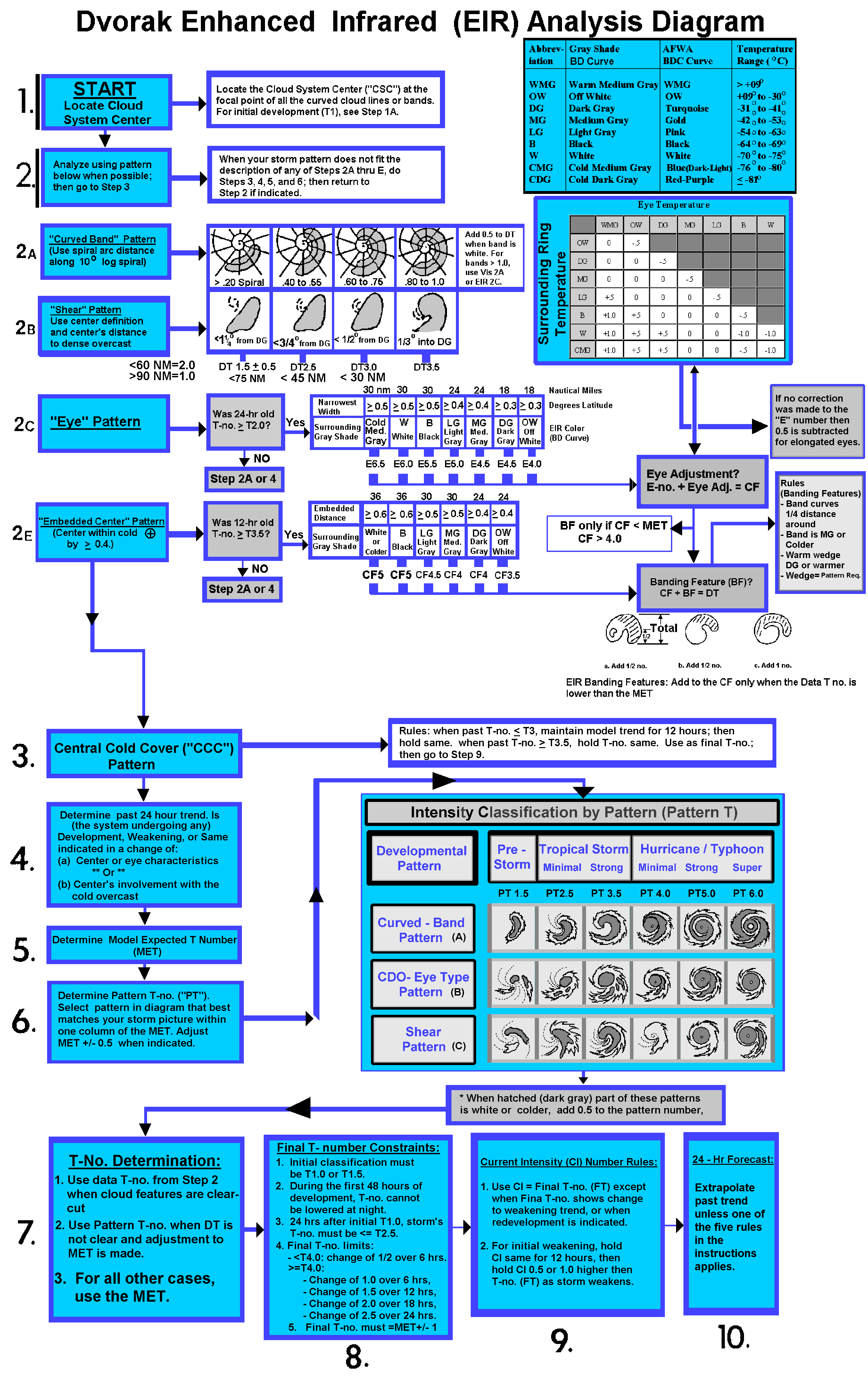

  Dvorak Enhanced Infrared Analysis Flowchart
  Enlarged Dvorak Enhanced Infrared Analysis  Flowchart

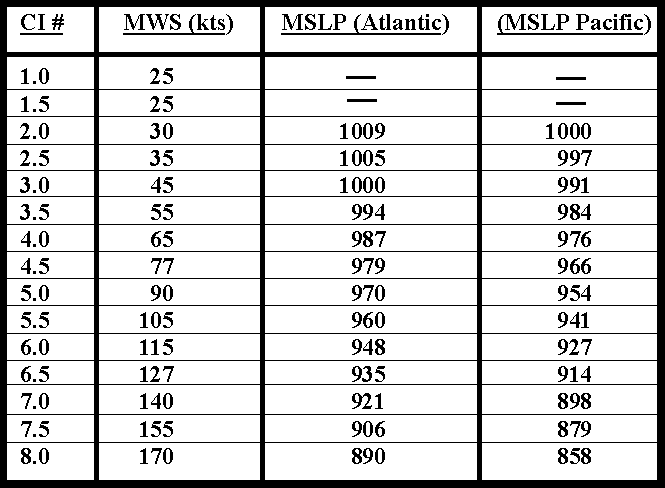

Current Intensity/ Wind Speed Relationship
























Step
- By - Step Guide:

Are you trying to
complete a Dvorak Intensity Estimate?

Try starting >>here<<












The individual Dvorak
Steps (for the ENHANCED

INFRARED Method) are
described in detail here:







Step
1: Find Cloud System Center (CSC)










Step
2:


Select proper cloud pattern:






Step
2A:  Curved Band Method





Step
2B:  Shear Method





Step

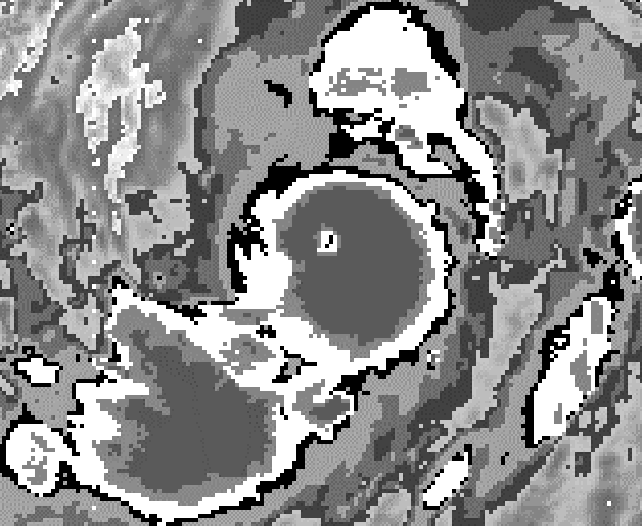

2C : EIR Eye Method





Step
2E : Embedded Center















Step
3: Central Cold Cover (CCC)










Step
4: 24 Hour Trend (D, S, W)










Step
5: Model Expected  T # (MET)










Step
6: Pattern T#










Step
7: Final T# determination










Step
8: Dvorak Constraints











Step
9: Current Intensity (CI) number










Step
10: 24 Hour Trend Forecast
