Visual Step 2: Banding Feature

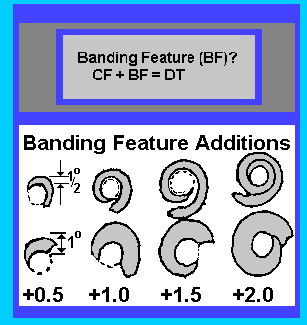

Banding Feature Addition: Used with Eyes & Central Dense Overcast (CDO)


 - Dense, mostly overcast band that curves at least 1/4 distance around the central feature.
 - Rarely used if CF is greater than 4.5.
 - Compare to chart.
 Click here for an example of a banding feature with an EYE!
Click here for an example of a banding feature with a CDO!
 After you determine the Data T and enter it into your Dvorak Worksheet, then Go on to Step 4
Go to Step 4 Now
(Skip step 3 if you chose 2A,B,C or D)
Go to the Previous Step
Go to Step 3 (CCC) if needed
Return to top level EIR Dvorak Page
Go to Visual Dvorak Page
Return to main Dvorak Page
