Visual Step 2C

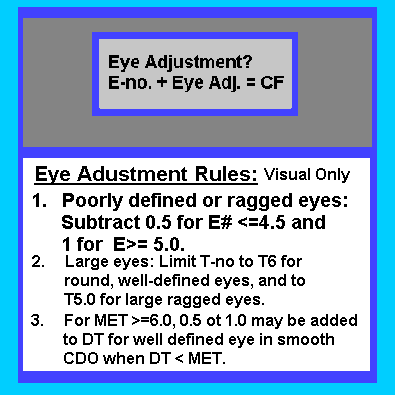

Visual "EYE" Pattern (Continued-2): EYE ADJUSTMENT #
 For poorly defined or ragged eyes subtract .5 if E# <= 4.5, and subtract 1.0 if E# >= 4.5. Add .5 or 1.0 if the eye is well defined, circular, and embedded in a smooth, very dense canopy Add .5 or whole 1.0, IF the MET >= 6.0, & the CF is less than the MET.
 Go on to the Banding feature
you enter this information  into your Dvorak Worksheet

 After you determine the Data T and enter it into your Dvorak Worksheet, then Go on to Step 4
Go to Step 4 Now
(Skip step 3 if you chose 2A,B,C or E)
Go to the Previous Step
Go to Step 3 (CCC) if needed
Return to top level Vis Dvorak Page
Go to Visual Dvorak Page
Return to main Dvorak Page
