Visual Step 2C

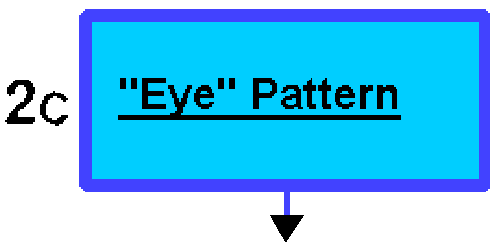

VISUAL "EYE" Pattern (Continued):
Continued.....
  • Determine if Eye is banding type or CDO type eye.
  • Measure the embedded distance of the eye, or the average band width if eye is a banding type.
    		•
    • For small eyes, measure distance from center
    • For large eyes (> 30 nm)  measure from edge.

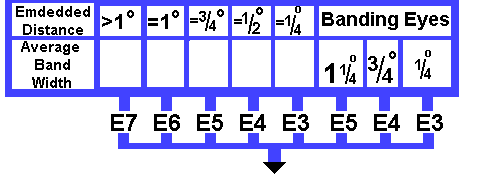

  • Apply Values to E# Table

    •

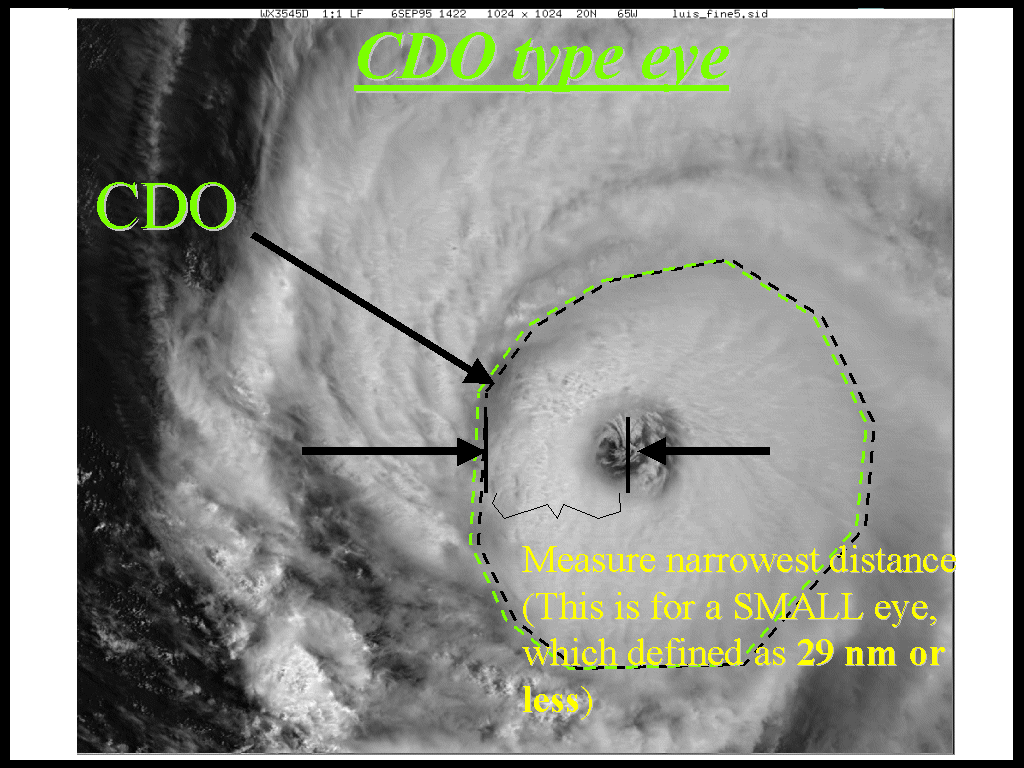

    Click here for an example of a CDO - Type Eye (small)!

    Click here for an example of a CDO - Type Eye (large)!

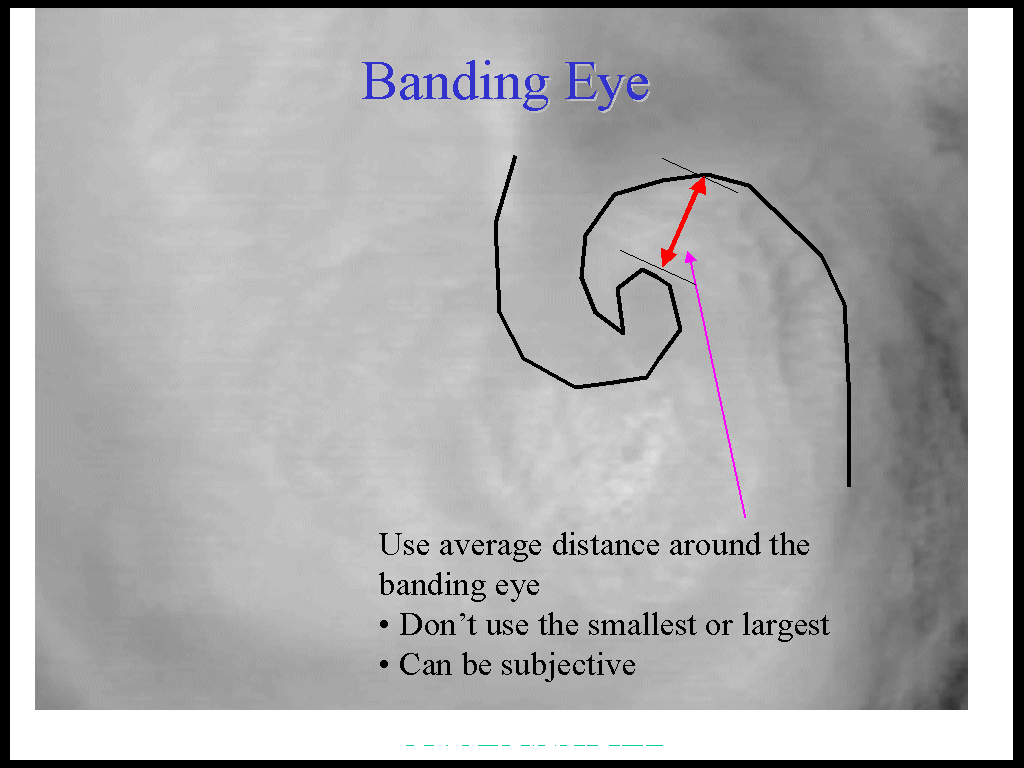

    Click here for an example of a Banding Eye

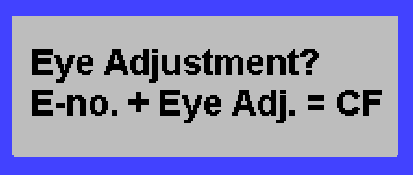

    Go on to the EYE ADJUSTMENT after
    you enter this information
    into your Dvorak Worksheet

     Do you need a  Banding Feature Addition?
     After you determine the Data T and enter it into your Dvorak Worksheet, then Go on to Step 4
    Go to Step 4 Now
    (Skip step 3 if you chose 2A,B,C or D)
    Go to the Previous Step
    Go to Step 3 (CCC) if needed
    Return to top level VISUAL Dvorak Page
    Go to Visual Dvorak Page
    Return to main Dvorak Page
